APMC Panel Filter

APMC Panel Filter

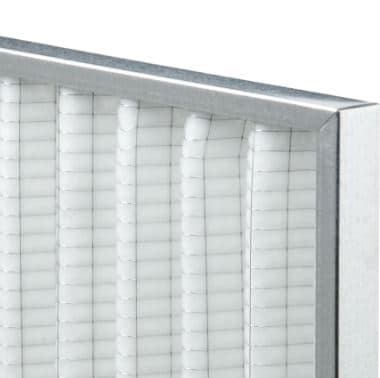

Panel filters are pleated filters which are assembled within a galvanized steel frame and a synthetic media.

  • Frame : Galvanised steel
  • Medium : Synthetic
  • Gasket : Optional Neoprene
Ask for a quoteCall me back
Filter class according to ISO 16890
ISO Coarse 70%
Maximum final presssure drop
250Pa
HVAC

HVAC

industry

Industry

Specifications

  • Frame : Galvanised steel
  • Medium : Synthetic
  • Gasket : Optional Neoprene
  • Maximum temperature : 70°C
  • Maximum relative humidity : 90%

Installation

  • Ensure that the filter is fitted correctly
  • Suction side – clean air side
  • Filter should be correctly installed: no leaks
  • Gaskets should be completely undamaged
  • Filter should be secured at four points
  • Ensure that the filter medium is not folded double
  • Take care to avoid damaging the filter during installation
  • System should be run in for several hours to achieve the desired result
  • Filter installation records; note the date, type and initial resistance.
Pressure drop APMC Panel filter

Pressure drop
